Series 3000 intrinsically safe absolute shaft encoder - WiFiEx

3



X

   K 1 - X

X

 W

X

 - A X X X
  |



|___|

   |



 Resolution



 |



Output

 |   A128 = 7 bit
  |

06 = 4...20 mA

Exit A024 = 10 bit
Protection 33 = DevicceNet K = Axial
A = IP54 08 = XML RS232 H = Radial

B = IP65

 57 = ModBUS

C = IP66 Aluminum



D = IP66 S. Steel




Price: (for encoder + transmitter + battery + receiver

IP54 and 65: From 840.00£

IP66: Aluminum: From 1100.00£

IP66: Stainless Steel: From 1500.00£

(no cable cost, no barrier cost, no engineer installation cost)

Technical Data
Encoder:
Operating Temp: -20C to +49C
Housing Material: Aluminum or St. Steel
Shaft Material: St. Steel
IP rating: IP54 up to IP66
Shaft load: Supports 'system' weight
Humidity: 98% permissible
Shock: 10mg (6msec)
Vibration: 5g (500Hz)
Shaft Speed: 3000 rpm
Transmitter:
Operating Temp: -20C to +60C
Housing Material: Clear Makrolon (plastic)
IP rating: IP66
Humidity: 98% permissible
WiFi Frequency: 2.4 GHz
Data Rate: 250 kbs
Battery Pack:
Operating Temp: -20C to +60C
Housing Material: To match encoder
IP rating: IP66
Humidity: 98% permissible
Type: Lithium Thyonide Chloride
Life Time: About 10 years
  1 data transmission per 20 s
Receiver Module:
- Click above for a full description of the outputs that can be generated from the receiver module.
- The default output protocol is RS232, which can be read and viewed with the Hyper Terminal in windows and also with the most common data acquisition software packages such as Labview, Daisy, WonderWare, WinWedge and Excel.
- Other outputs can be DeviceNet, ModBus, 4...20 mA

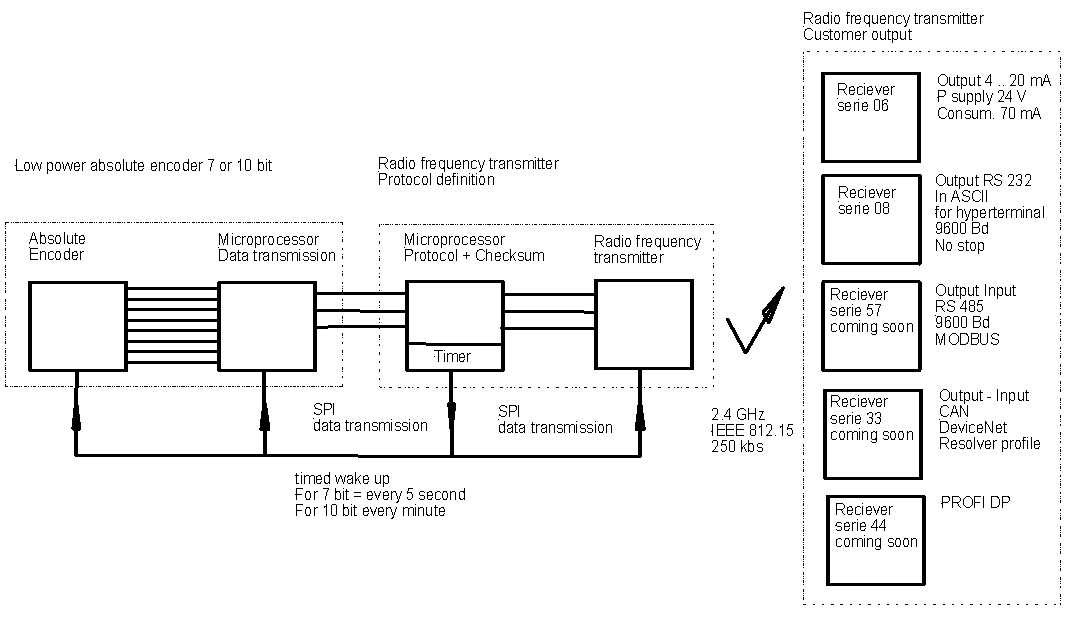

Function:
The 7 or 10 bit position from the encoder is transmitted to a distant module.  As standard, the module is updated every two seconds in order for the system to have a lifetime of 10 years.
Identity:
Each encoder has a unique identity number in case multiple sensors are purchased.  The ID numbers can be customer specified.  As default, they be the serial number of the device, this way, there will never be conflicting identities on a system.
Certifications
IP 54 or 65 or 66

IECEX (IECEx SIR 08-0015X) certificate

ATEX (SIRA 08ATEX2054X) certificate


Mounting Instructions

1. Just before installing encoder onto shaft, screw the battery pack in firmly to the transmitter housing (the clear part)

2. Mount the encoder mechanically as you would any other encoder.

3. On the safe side, plug in the receiver module into the PLC or computer and start reading the data in whatever format you have.

4. The battery can be 'hot-swapped' in the field for a new battery if it does run out.

5. If you will NOT immediately use the encoder, do NOT connect the battery.  Only connect the battery right before using.
Dimensions
