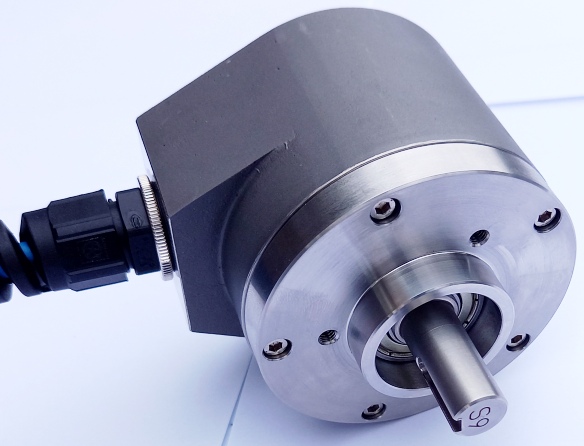

Series IPW stainless steel incremental shaft encoder up to 12 mm |
|
|
W | X | X | X | - | 1 | 3 | X | X | - | X | X | X | X | |||||||||||
|
| |
Shaft Size |
| |
| |
|
Resolution - ppr |
||||||||||||||||||||
|
| |
K2 = 6 x 10 mm |
| |
Exit |
||||||||||||||||||||||
|
| |
K3 = 6 x 20 mm |
| |
A = Axial |
||||||||||||||||||||||
|
| |
|
K4 = 10 x 20 mm |
| |
R = Radial |
|||||||||||||||||||||
|
| |
K5 = 12 x 20 mm |
| |
|
||||||||||||||||||||||
|
| |
K7 = 3/8" x 20 mm |
Connection |
|||||||||||||||||||||||
|
| |
K8 = 8 x 20 mm |
1 = 2m cable |
|||||||||||||||||||||||
|
|
| |
2 = 5m cable |
|||||||||||||||||||||||
|
Protection |
3 = 10m cable |
||||||||||||||||||||||||
|
D = IP66 Stainless Steel (IPW) |
|
||||||||||||||||||||||||
|
5...24 Volt Extended Line Driver is standard, optional Current Sink Open Collector is available
Zone 0, Class 1 Div 1 |
|||||||||||||||||||||||||
| Technical Data | Connection Options | ||||
| Operating temp: | - 20 ...+ 60 degrees C | Cable | |||
| - 4 ...+ 140 degrees F | PS GND | Black | |||
| On request: | - 20 ... + 80 degrees C | PS 5 ... 24 V | Red | ||
| Max frequency: | 150 kHz | Output A | White | ||
| Current consumption: | 80 mA (max.) | Output B | Blue | ||
| Power supply: | 5 - 24V | Output O | Yellow | ||
| Weight: | 2 kg | Output A inv | Green | ||
| Protection: | IP66 | Output B inv | Violet | ||
| Housing: | S Steel | Output O inv | Brown | ||
| Shaft: | Stainless Steel | ||||
| Bearings: | 2 x 6001 - (Z) (RS) | Output | |||
| Torque: | 0.7 oz/in (5 N-cm) | Diagram is shown with clockwise shaft rotation viewed from | |||
| Humidity: | Up to 98% permissible |
shaft end |
|||
| Speed: | 6000 RPM max. |
|
|||
| Shock: | 10g (6msec) | ||||
| Vibration: | 5g (500 Hz) | ||||
| Shaft load: | Radial / Axial 10 N | ||||
| Line driver output max: | 50 mA per channel | ||||
| Max. ppr | 5000 | ||||
| Inertia: | 100 gm-cm2 | ||||
| Certifications | |
| To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used. Our six channel barrier and isolator work with our encoders. Isolator Data Sheet | |
| IP 66 | |
| ATEX [Certificate] | |
| IECEx [Certificate] | |
| CSA [Certificate] | |
| GOST-CU [Certificate] | |
| Mounting Instructions | |
| Hook up the encoder with the connections as described. Make sure power supply meets specifications. Attach encoder to mounting bracket as shown. Attach shaft using a flexible coupling. | |

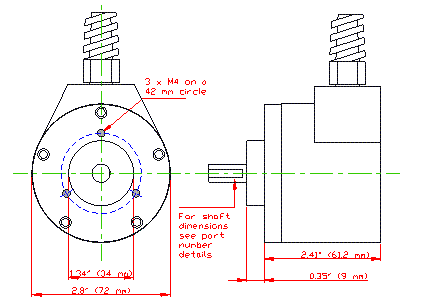

| Dimensions | |
|
|
|
