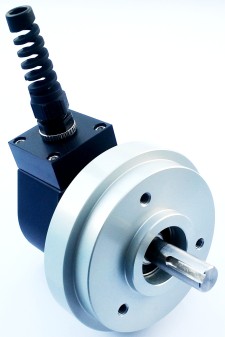

Series 3000 incremental heavy duty shaft encoder up to 12 mm |
|
|
3 | B | K | 1 | - | 1 | 3 | X | X | - | X | X | X | X | |||||||||||
|
|____| |
Shaft Size |
|
| |
| |
|
Resolution - ppr |
|||||||||||||||||||
| | | K1 = 12 x 25 mm | | | Exit | ||||||||||||||||||||||
| | | other shaft sizes | | | A = Axial | ||||||||||||||||||||||
| | | available | | | R = Radial | ||||||||||||||||||||||
|
| |
Connection |
||||||||||||||||||||||||
| IP Rating | 1 = 2m cable | ||||||||||||||||||||||||
| 3A = IP54 | 2 = 5m cable | ||||||||||||||||||||||||
| 3B = IP65 (standard) | 3 = 10m cable | ||||||||||||||||||||||||
| H = 9512 12 pin plug & socket | |||||||||||||||||||||||||
|
5...24 Volt Extended Line Driver is standard, optional Current Sink Open Collector is available
Zone 0, Class 1 Div 1 |
|||||||||||||||||||||||||
| Technical Data | Connection Options | ||||
| Operating temp: | - 20 ...+ 60 degrees C | Cable | 12 pin | ||
| - 4 ...+ 140 degrees F | PS GND | Black | 1 | ||
| On request: | -20 ... + 80 degrees C | PS 5 ... 24 V | Red | 2 | |
| Max frequency: | 150 kHz | Output A | White | 3 | |
| Current consumption: | 50 mA (max.) | Output B | Blue | 4 | |
| Power supply: | 5 - 24V | Output O | Yellow | 5 | |
| Weight: | 42 oz (1.2 kg) | Output A inv | Green | 6 | |
| Protection: | IP 65 (IP54 available) | Output B inv | Violet | 7 | |
| Housing: | Aluminum | Output O inv | Brown | 8 | |
| Shaft: | Stainless Steel | ||||
| Bearings: | 2 x 6001 - (Z) (RS) | Output | |||
| Torque: | 0.7 oz/in (5 N-cm) | Diagram is shown with clockwise shaft rotation viewed from | |||
| Humidity: | Up to 98% permissible |
shaft end |
|||
| Speed: | 6000 RPM max. |  |
|||
| Shock: | 10g (6msec) | ||||
| Vibration: | 5g (500 Hz) | ||||
| Shaft load: | Radial / Axial 10 N | ||||
| Line driver output max: | 50 mA per channel | ||||
| Max. ppr | 5000 | ||||
| Inertia: | 30 gm-cm2 | ||||
| Certifications |
| To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used. Our six channel barrier and isolator work with our encoders. Isolator Data Sheet |
| IP 54 or 65 |
| ATEX [Certificate] |
| IECEx [Certificate] |
| CSA [Certificate] |
| GOST-CU [Certificate] |
| Mounting Instructions |
| Hook up the encoder
with the connections as described. Make sure power supply meets
specifications. Attach encoder to mounting bracket as shown.
Attach shaft using a flexible coupling.
|
| Dimensions |
|
|
