Series 14 incremental hollow shaft encoder up to 40 mm

click for non intrinsically safe version

 1   4 X X - 1 3 X R - X X X X


Shaft Size

Connection



Resolution - ppr
12 = 12 mm 1 = 2m cable
14 = 14 mm 2 = 5 m cable

20 = 20 mm

 D = 9 pole D plug & socket
25 = 25 mm H = 9512 12 pin plug & socket
30 = 30 mm
40 = 40 mm

B1 = 1"

5...24 Volt Extended Line Driver is standard, optional Current Sink Open Collector is available

Select your options below and buy online, easily and securely, with Google Checkout (from £205)



  Shaft           Connection                 Resolution      Quantity



Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 9 pole Cable 12 pin
-   4 ...+ 140 degrees F PS GND 1 Black 1
On request: -20 ... + 80 degrees C PS 5 ... 24 V 2 Red 2
Max frequency: 150 kHz Output A 3 White 3
Current consumption: 50 mA (max.) Output B 4 Blue 4
Power supply: 5 - 24V Output O 5 Yellow 5
Weight:    21 oz (0.6 kg) Output A inv 6 Green 6
Protection: IP 64S, NEMA 3 Output B inv 7 Violet 7
Housing: Die Cast Zinc Alloy Output O inv 8 Brown 8
Shaft: Aluminum
Bearings: 2 x 6810 ZZ C2 Output
Torque: 0.4 oz/in (3 N-cm) Diagram is shown with clockwise shaft rotation viewed from
Humidity: Up to 98% permissible

opposite side to shaft grub screws
Speed:  3000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Supports its own weight
Line driver output max: 50 mA per channel
Max. ppr 3000
Certifications
To use the encoder in a hazardous area, a safety barrier has to be used.  Our six channel barrier series AB was designed to work with our encoders.  Data Sheet
IP 64 S
SIRA - 51D7236-1A
IM1  EEx (ia) I
II1G  EEx (ia) IIB T4  [Certificate]  PDF file
SIRA 02ATEX2317X  [Certificate, P1, P2, P3]  PDF file
UL E216028  [Certificate]  PDF file
Mounting Instructions
Mount fixture to the machine with three screws and three washers, M6 or 1/4".  Slide the encoder onto the shaft.  With the setscrews, tighten the hollow shaft encoder onto the shaft with a minimum clearance of 1/16" between fixture and encoder.  This assembly allows the shaft to float and increases the lifetime of the bearings.  Connect the encoder as per wiring specifications. Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.

Technical data for mount:  1/8" stainless steel wire

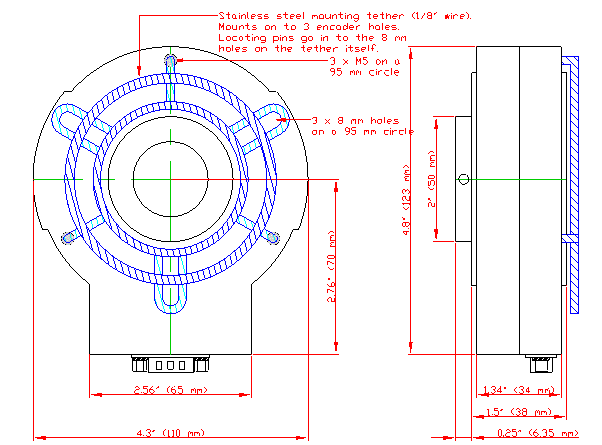

Dimensions
