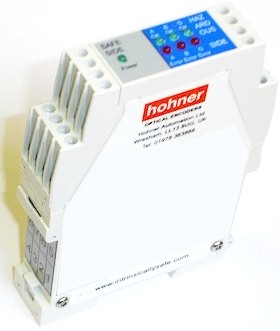

Receiver Module for Wireless Encoders

Receiver -  A A  -  Z Z Z


Type of output = AA

13 = Standard Quadrature

08 = XML RS232

06 = 4...20 mA (4...20mA span is based on load of 250 ohms)


Options = ZZZZ

X01 = With external antennae

X02 = With external antennae and 4ft (1.2m) cable lead

X03 = With external antennae and 6ft (1.8m) cable lead

X04 = Dual output, 2x A and B channels (can be used together with other options, just append to end of part number)


Technical Data (General)
Operating Temp: -20C to +49C
Housing Material: Plastic
IP rating: IP44
Humidity: 98% permissible
Shock: 10mg (6msec)
Vibration: 5g (500Hz)
Mounting: On to DIN rail
Operating Distance 300 ft max with line of sight
Frequency Band: 80 Channels 915 - 868 MHz
Security: CRC Check Sum / Unique ID
Data Rate: 25 kbps
Operating Distance 300 ft max with line of sight
General Details:
-Receives data from the sensor
-Electronics built into the module can then convert the data to RS232 for HyperTerminal, Analogue, Voltage and other protocols
-WiFi communication is kept short to avoid battery drainage.
Each encoder has a unique identity number in case multiple sensors are purchased.  The ID numbers can be customer specified.  As default, they be the serial number of the device, this way, there will never be conflicting identities on a system.

Technical Data (For Each Type)
Quadrature Version

Data Transmission:

Data packets are sent out in intervals of 16ms.  Each data packet contains the pulses of what happened in the previous 16ms.  This results in the pulses not coming out evenly spaced.  Quadrature from encoder itself is limited to 60Hz.




Connects in same way as normal incremental encoder, channels A and B and power


Power requirements are 12...24V input

RS232 Version
Data Transmission: Data is sent as simple ASCII
Connection 5...24V
4...20 mA Version
Data Transmission 4...20 mA
Connection: 3 wire, 24V
Calibration The 4...20mA span is based on a load of 250 ohms
