Complete Encoder + Isolator kit with Hohner encoder series NAMFPX

and MTL Isolator series 4013 or 5015



N

A

M

F

P

X

   X X 3

X

 G   R / 0 X X X - M T L X X X X

Shaft Size

 |

Output

   Resolution - ppr



 Isolator
20 = 20 mm | 1 = A 1 up to 512 4013 = MTL4013
30 = 30 mm | 2 = A & B 1024 upon request 5015 = MTL5015
AA = 1" | 3 = A & B & Ref

H1 = 1" UNS |

4 = A & B and A & B
H2 = 3/4" BSP |

Other combinations as well
H5 = 5/8" x 18 UNF |
  Barrier Suitability
  3 = Set up with MTL4013 or MTL5015

Price: From £653.00

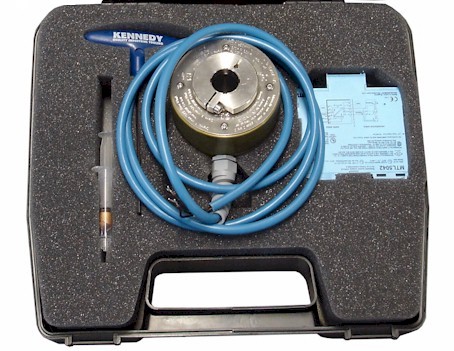

Technical Data Contents of Kit
Encoder Data Sheet - [Standard Shaft] [Threaded Shaft] Carry case
Isolator Data Sheet [MTL4013] - Backplane mounting Encoder
Isolator Data Sheet [MTL5015] - DIN rail mounting Isolator (one only)
Connection Details for 5015 Allan key for locking collar
Connection Details for 4013 Shaft grease
*Encoder supplied with two meters of cable standard
