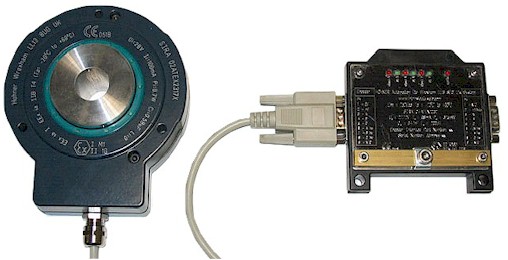

Series 14 intrinsically safe encoder up to 40 mm with a IIB barrier series AB |
|
|
||||||||||||||||||||||||||||||||
| 1 | 4 | X | X | - | 1 | 3 | 8 | R | - | X | X | X | X | - | A | B | ||||||||||||||||
| Shaft | Connection | Resolution | ||||||||||||||||||||||||||||||
| 25 = 25 mm |
1 = 6 ft cable with 9 pole D |
|||||||||||||||||||||||||||||||
| B1 = 1" | ||||||||||||||||||||||||||||||||
| Technical Data | Output | |
| Operating temp: | - 20 ...+ 60 degrees C | Diagram is shown with clockwise shaft rotation viewed |
| - 4 ...+ 140 degrees F | from shaft end | |
| On request: | -20 ... + 100 degrees C |  |
| Power supply: | 5 - 24V | |
| Current consumption: | 50 mA (max.) | |
| Certifications, Handbooks and Data Sheets |
| Handbooks |
| English [Handbook] - PDF file |
| German [Handbook] - PDF file |
| Portuguese [Handbook] - PDF file |
| Barrier |
| Barrier Data Sheet |
| SIRA 04ATEX2032 [Page 1, 2] - PDF file |
| Encoder |
| Encoder Data Sheet |
| IP 64S |
| SIRA - 51D7236-1A |
| IM1 EEx (ia) I |
| II1G EEx (ia) IIB T4 [Certificate] PDF file |
| SIRA 02ATEX2317X [Certificate, P1, P2, P3] PDF file |
| UL E216028 [Certificate] PDF file |
| |
| Wiring Diagram (click for full size drawing) |
 |
