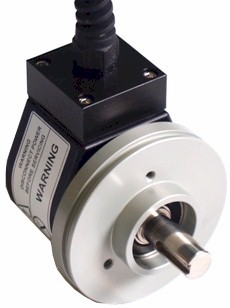

Series CSW absolute single-turn analog encoder - 4 ... 20 mA output

W   B X X - 3 4 X X - X X X X

|____|

Shaft Size



 |

|



Resolution - ppr
| K2 = 6 x 10 mm  | | 0360 = 1 ramp
| K4 = 10 x 20 mm  | | 0180 = 2 ramps
| K5 = 12 x 20 mm | | 0090 = 4 ramps
|

| | (ramps per turn)
IP Rating | Exit
WA = IP54 | A = Axial
WB = IP65

Connection

 R = Radial
1 = 2m cable
  2 = 5m cable
F = 4 pin plug & socket



Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable
-   4 ...+ 140 degrees F PS GND Black
On request: - 40 degrees PS 24 V Red
Max frequency: 150 kHz Output 4...20mA White
Current consumption: 50 mA (max.)
Power supply: 5 - 24V 4 pin plug
Weight:    21 oz (0.6 kg) PS GND 1
Protection: IP 65 or 54 PS 24 V 2
Housing: Aluminum Output 4...20mA 3
Shaft: Stainless Steel
Bearings: 2 x 6001 - (Z) (RS) Output
Torque: 0.7 oz/in (5 N-cm) Count will increase in CW direction.  Precision 0.05%
Humidity: Up to 98% permissible

*4...20mA span based on 250 ohm load
Speed:  3000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial / Axial 10 N
Line driver output max: 50 mA per channel
Precision: 4096 steps per rev.
Inertia: 100 gm-cm2






Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

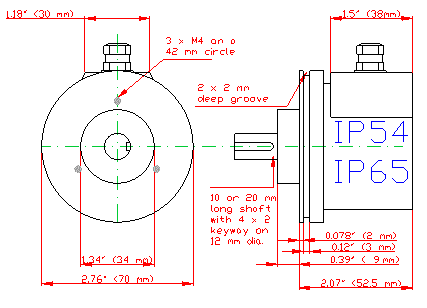

Dimensions
