Series CS30 shaft encoder with 4...20mA output

IP54/65 aluminum photo shown



Click here for IP66 version photo and dimensions

 3   X K 1 - X X X X - 0 3 6 0
  |   |____|   |   |



Resolution
Protection | | |

See under

technical data
A = IP54 | | |
B = IP65 | | |
C = IP66 Al | | |
D = IP66 SS | |

Exit

Output Type

 | A = Axial
34 = 3 wire, standard | R = Radial
06 = 2 wire, intrinsically safe |
    when used with MTL5042 Connection

1 = 2 m cable
2 = 5 m cable
F = 4 pin plug
Click here for dimensions of the IP66 version

Price: Intrinsically Safe -> From £450.00          Non-intrinsically Safe -> From £370

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 2 wire version (intrinsically safe EEx ia IIC)
-   4 ...+ 140 degrees F 4 pin plug Cable
On request: -20 ... + 100 degrees C + Loop 1 Red
Current consumption: 80 mA (max.)  - Loop 2 Black
Power supply: 24V
Weight:    42 oz (1.2 kg)
Housing: Aluminum
Shaft: Stainless Steel 3 wire version (standard)
Bearings: 2 x 6001 ZZ 4 pin plug Cable
Torque: 0.4 oz/in (3 N-cm) PS GND 1 Black
Humidity: Up to 98% permissible PS +24V 2 Red
Speed: 3000 RPM max. Output 4...20mA 3 White
Shaft load: Radial / Axial 10 N
Resolution Output

Intrinsically Safe version: (10 bits)

0360 = 1024 counts per current ramp

           1 ramp per turn (360 degrees per ramp)

0180 = 512 counts per current ramp

           2 ramps per turn (180 degrees per ramp)

0090 = 256 counts per current ramp

           4 ramps per turn (90 degrees per ramp)



Non-intrinsically Safe version: (12 bits)

0360 = 4096 counts per current ramp

           1 ramp per turn (360 degrees per ramp)

0180 = 2048 counts per current ramp

           2 ramps per turn (180 degrees per ramp)

0090 = 1024 counts per current ramp

           4 ramps per turn (90 degrees per ramp)

 Count will increment in CW direction.
Certifications

Best suited to work with the following isolators: (can be purchased from us as well)

Isolator Data Sheet [MTL5042] - DIN rail mounting - 131£
SIRA 01 ATEX 2189  [Certificate, Variations 1, 2]  PDF file
IP 65, 65 or 66/X7
EECS 1774 / 03 / 001  [Certificate]  PDF file

Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with three screws, option 2 is to use synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

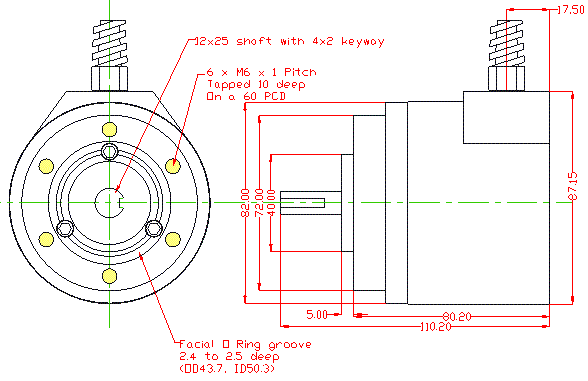

Dimensions    Click here for IP66 version photo and dimensions
