Series 97 incremental hollow shaft encoder up to 20 mm

(intrinsically safe part number)






9 7 X X - X X X X - X X X X
|_______| |_______| | | R  E  S  O  L  U  T  I  O  N
Shaft Size | Connection | Up to 2500 ppr max

| |
Output Circuit Housing Material



XX

Shaft Size

XX Output Circuit

08 = 8 mm

13 = Extended Line Driver
12 = 12 mm 16 = Current Sink Open Col.
20 = 20 mm ... and so forth ... All are 5...24 Volts with all six channels

X Connection X Housing Material
1 = 2 m cable R = Aluminum (IP65)
2 = 5 m cable S = Stainless Steel (IP65)
L = 10 cm cable with 9 pole D attached
M = 10 cm cable with 12 pin plug attached

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 9 pole D, 12 pin plug Cable
-   4 ...+ 140 degrees F PS GND 1 Black
On request: -20 ... + 100 degrees C PS 5 ... 24 V 2 Red
Max frequency: 100 kHz Output A 3 White
Current consumption: 50 mA (max.) Output B 4 Blue
Power supply: 5 - 24V Output O 5 Yellow
Weight:    16 oz (0.5 kg) Output A inv 6 Green
Protection: IP 65 or 66 Output B inv 7 Violet
Housing: Aluminum or SS Output O inv 8 Brown
Shaft: Stainless Steel
Bearings: Ballraces Output
Torque: 0.4 oz/in (3 N-cm) Diagram is shown with clockwise shaft rotation viewed from
Humidity: Up to 98% permissible

opposite side to shaft grub screws

Speed:  3000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Supports its own weight
Line driver output max: 50 mA per channel
Max. ppr 2500

Certifications
To use the encoder in a hazardous area, a safety barrier has to be used.  Our six channel barrier series AB was designed to work with our encoders.  Data Sheet
IP 65 / 66
II1G  EEx (ia) IIB T4  [Certificate]  PDF file
SIRA 02ATEX2317X  [Certificate, P1, P2, P3]  PDF file
SIRA N / 520 / 3618 / 6
UL E216028  [Certificate]  PDF file
Mounting Instructions

Mount fixture to the encoder with two M3 screws and two washers. Slide the encoder onto the shaft.  With two 1/4-20 screws, tighten the encoder fixture to the motor-frame or machine.  Keep clearance between the encoder and motor or housing by bending the fixture arms as required.  Tighten the setscrew onto the shaft.  Connect the encoder as per wiring specifications. Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.


Technical data for mount:  0.3 mm stainless steel sheet

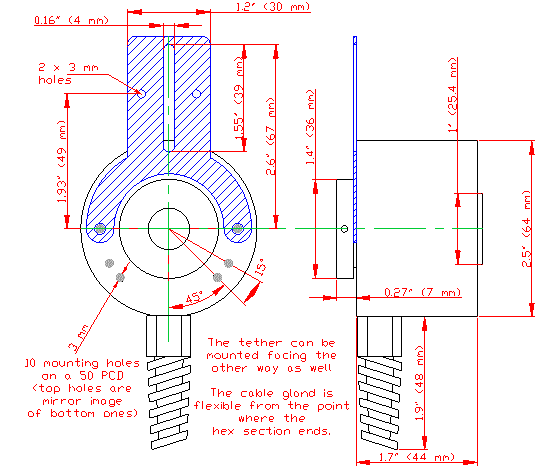

Dimensions
