Series PK incremental large bore hollow shaft encoder up to 115 mm


P   K - X X 4 X P X 0 - X X X X
| | | |           Resolution
Flange | |

|

L = 120mm | | Connection
R = 160mm | | 3 = 2 m cable
M = 200mm | | 5 = 9416 16 pin connector
U = 250mm |
|

|

Shaft

Shaft Version
2 = 45mm G = Set screw tightening
5 = 50mm M = Locking collar tightening
2 = 60mm
7 = 75mm Electronics are standard incremental 5-28V
2 = 90mm
3 = 100mm Match encoder shaft size to flange
4 = 110mm size colour.  Bigger shaft size

2 = 150mm

means bigger encoder flange

Please contact us for other shaft sizes

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 16 pole Cable
-   4 ...+ 140 degrees F PS GND 1 Black
Max frequency: 300 kHz PS 5 ... 24 V 2 Blue
Current consumption: 80 mA (max.) Output A 3 Brown
Power supply: 5 - 24V Output B 4 Beige
Weight:    1 Kg to 3 Kg Output O 5 Rose
Protection: IP 54 Output A inv 6 Green
Housing: Aluminum Output B inv 7 Yellow
Shaft: Aluminum Output O inv 8 Violet
Torque: 19 N-cm
Humidity: Up to 98% permissible Output
Speed:  3000 RPM max. Diagram is shown with clockwise shaft rotation viewed from
Shaft load: Supports its own weight

opposite side to shaft grub screws

Max. ppr 4096

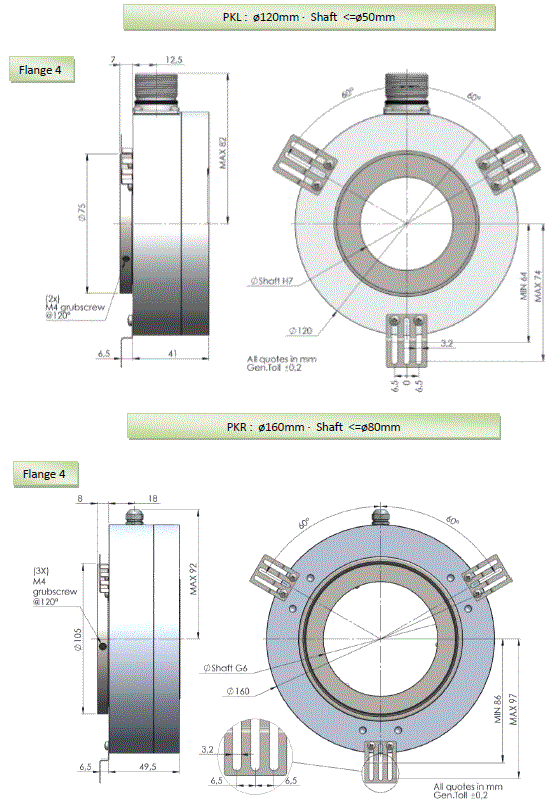

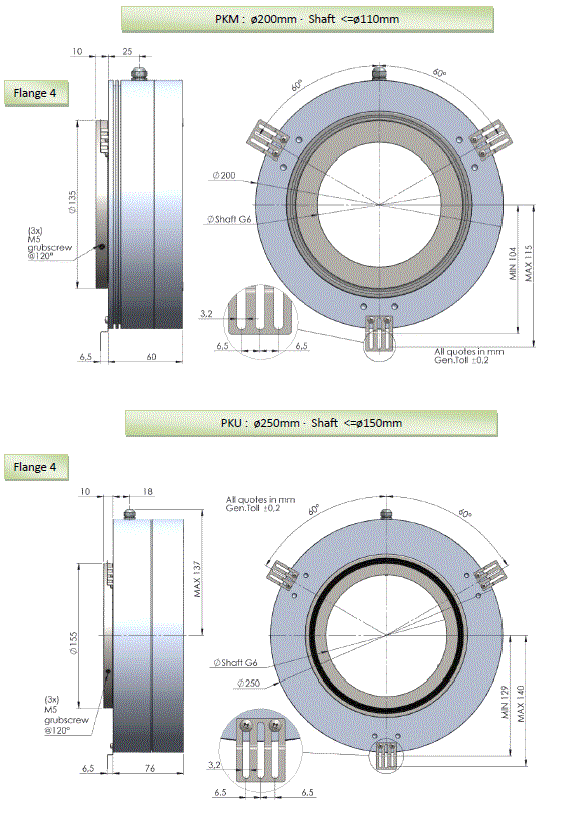

Dimensions
