Series NAMYQX incremental solid shaft encoder (IP66/X7) |
 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Please call +44 1978 363 888 in Europe or 1 800 295 5693 in North America or email us for pricing & delivery |
| Technical Data | Connection Options | ||||
| Operating temp: | - 20 ...+ 60 degrees C | Cable 2 meters | Connector | ||
| - 4 ...+ 140 degrees F | PS GND | Black | Any type of connector with more than 4 pins and an IP rating of 66 can be used, pin allocations will determined by end customer. More than one connector is possible as well. | ||
| Max frequency: | 150 kHz | PS 5...24 V | Red | ||
| Weight: | 53 oz (1.0 kg) | Output A | White | ||
| Protection: | IP 66/X7 M | Output B | Blue | ||
| Housing: | St. Steel | Output O | Yellow | ||
| Shaft: | Stainless Steel | Output A inv | Green | ||
| Bearings: | 2 x 6001 | Output B inv | Violet | ||
| Torque: | 0.8 oz/in (6 N-cm) | Output O inv | Brown | ||
| Shaft load: | Supports its own weight | ||||
| Humidity: | Up to 98% permissible | ||||
| Speed: | Resolution dependant | ||||
| Max. ppr | 5000 | ||||
| Output for Channels | |||||
 Diagram is shown clockwise |
|||||
| Certifications |
| To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used. Our six channel barrier and isolator work with our encoders. Barrier Data Sheet Isolator Data Sheet |
| IP 54, 65 |
| SIRA - N / 520 / 3618 / 4 |
| IM1 EEx (ia) I |
| II1G EEx (ia) IIB T4 [Certificate] PDF file |
| SIRA 02ATEX2317X |
| UL E216028 |
| Mounting Instructions |
| Clamp encoder to
shaft and use torque arm to prevent rotation. Hook up the encoder
with the connection as described. Make sure power supply meets
specifications
|

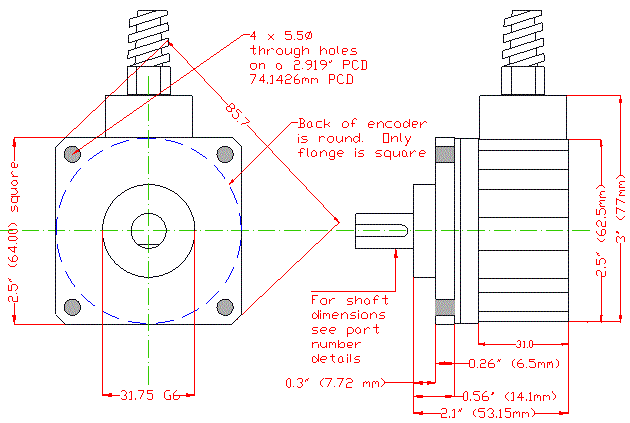

| Dimensions |
|
|
