Series NAMFPX NAMUR large incremental encoder

up to 50 mm for drawworks



N

A

M

F

P

X

   X X L

8

 G   R / 0 X X X

Shaft Size

 |

Output

Resolution - ppr
Standard Bore | 8 = ABO and Comps
40 = 40 mm |
50 = 50 mm |
Threaded shaft male/female |
L1 = 1.5" NPT |
  Electronic Output
  L = 5...24 V Extended
  Line Driver

    IECEx

Zone 0, Class 1 Div 1
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable 2 meters Connector
-   4 ...+ 140 degrees F PS GND Black Any type of connector with more than 4 pins and an IP rating of 66 can be used, pin allocations will determined by end customer.  More than one connector is possible as well.
Max frequency: 150 kHz PS 5...24 V Red
Weight: 53 oz (1.5 kg) Output A White
Protection: IP 66M, NEMA 4 Output B Blue
Housing: Aluminum Output O Yellow
Shaft: Stainless Steel Output A inv Green
Bearings: 2 x 61811 ZZ Output B inv Violet
Torque: 0.8 oz/in (6 N-cm) Output O inv Brown
Shaft load: Supports its own weight
Humidity: Up to 98% permissible
Speed:  3000 RPM
Max. ppr 5000
Shock: 10g (6 msec)
Vibration: 5g (500 Hz)

Output for Channels



Diagram is shown clockwise


Certifications
To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used.  Our six channel barrier and isolator work with our encoders.  Isolator Data Sheet
IP 66M
ATEX  [Certificate]
IECEx  [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions

Slide encoder onto shaft.  To keep encoder from rotating: have a pin to prevent rotation in one of the mounting holes, or a bracket bolted onto the mounting holes, or simply tie wrap the cable.  Whatever is done, ensure there is a bit of play between encoder and mounting arrangement to prevent bearing damage.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.

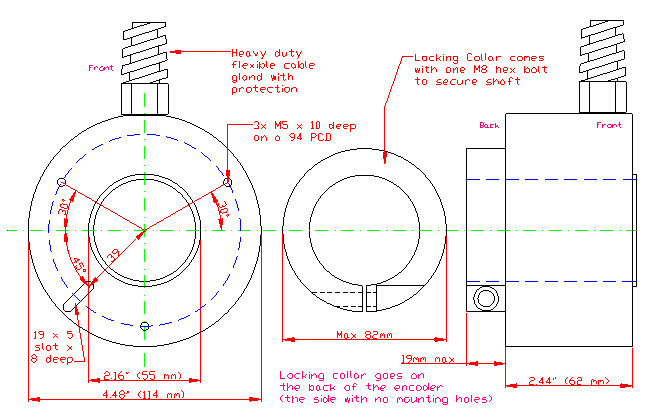

Dimensions
