Series 65 incremental encoder up to 12 mm, Solid or Hollow |
|
|
6 | 5 | X | X | - | 1 | 3 | X | R | - | X | X | X | X | |||||||||||
|
Shaft Size |
Connection |
|
Resolution - ppr |
||||||||||||||||||||||
| 07 = 7 mm | 1 = 2m cable | ||||||||||||||||||||||||
| 10 = 10 mm | D = 9 pole D plug & socket | ||||||||||||||||||||||||
|
12 = 12 mm |
|||||||||||||||||||||||||
| K1 = 12x25 solid shaft mm | |||||||||||||||||||||||||
| 5...24 Volt Extended Line Driver is standard, optional Current Sink Open Collector is available | |||||||||||||||||||||||||
|
Zone 0, Class 1 Div 1 |
|||||||||||||||||||||||||
| Technical Data | Connection Options | ||||
| Operating temp: | - 20 ...+ 60 degrees C | 9 pole D | 2 m cable | ||
| - 4 ...+ 140 degrees F | PS GND | 1 | Black | ||
| PS 5 ... 24 V | 2 | Red | |||
| Max frequency: | 75 kHz | Output A | 3 | White | |
| Current consumption: | 80 mA (max.) | Output B | 4 | Blue | |
| Power supply: | 5 - 24V | Output O | 5 | Yellow | |
| Weight: | 14 oz (0.4 kg) | Output A inv | 6 | Green | |
| Protection: | IP 54M | Output B inv | 7 | Violet | |
| Housing: | ABS Plastic | Output O inv | 8 | Brown | |
| Shaft: | Aluminum | ||||
| Bearings: | 2 x 6803 ZZ C2 | Output | |||
| Torque: | 0.4 oz/in (3 N-cm) | Diagram is shown with clockwise shaft rotation viewed from | |||
| Humidity: | Up to 98% permissible |
opposite side to shaft grub screws |
|||
| Speed: | 3000 RPM max. |
 |
|||
| Shock: | 10g (6msec) | ||||
| Vibration: | 5g (500 Hz) | ||||
| Shaft load: | Supports its own weight | ||||
| Line driver output max: | 50 mA per channel | ||||
| Max. ppr | 1024 | ||||
| Certifications |
| To use the encoder in a hazardous area, a safety barrier or galvanic isolator has to be used. Our six channel barrier and isolator work with our encoders. Isolator Data Sheet |
| IP 54 M |
| ATEX [Certificate] |
| IECEx [Certificate] |
| CSA [Certificate] |
| GOST-CU [Certificate] |
| Mounting Instructions |
|
Mount
fixture to the encoder with four self-tapping M6 x 10 screws and four No.
6.2 washers. Slide the encoder onto the shaft. With two 1/4-20 screws,
tighten the encoder fixture to the motor-frame or machine. Keep
clearance between the encoder and motor or housing by bending the fixture
arms as required. Tighten the setscrew onto the shaft. Connect
the encoder as per wiring specifications. Make sure power supply is within
the proper voltage and current rating. Encoder can be mounted with the
setscrew on the machine side or on the opposite side for either CW or CCW.
See datasheet for CW and CCW directions of the outputs. Technical data for mount: 0.3 mm stainless steel sheet
|

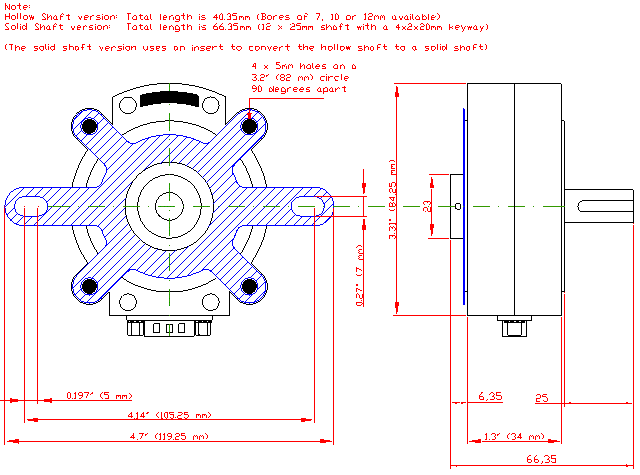

| Dimensions |
|
|
