Series TEO 3000 incremental heavy duty shaft encoder up to 12 mm
T E O   4   3   X   9 / X   X   X   X / X   X   X   X
  Connection |   |   |___|   Resolution - ppr
  0 = 2 m cable |   |   |
  1 = 5 m cable |   |   Protection
  4 = 12 pin plug |   |

AO = IP54 Aluminum
    |   |   BA = IP65 Aluminum
  |   |   NB = IP66 Aluminum

Shaft Size

   |   SB = IP66 Stainless Steel

O = 12 x 25 mm



Exit
E = 11 x 33 mm   A = Axial
    R = Radial

5 - 24 Volt Extended Line Driver is Standard PS
ABO and ABO inv is Standard Output
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Cable 12 pin
-   4 ...+ 140 degrees F PS GND Black 1
On request: -20 ... + 80 degrees C PS 5 ... 24 V Red 2
Max frequency: 150 kHz Output A White 3
Current consumption: 50 mA (max.) Output B Blue 4
Power supply: 5 - 24V Output O Yellow 5
Weight:    50 oz (1.4 kg) Output A inv Green 6
Protection: IP 65 (IP54 available) Output B inv Violet 7
Housing: Aluminum Output O inv Brown 8
Shaft: Stainless Steel
Bearings: 2 x 6001 - (Z) (RS) Output
Torque: 0.7 oz/in (5 N-cm) Diagram is shown with clockwise shaft rotation viewed from
Humidity: Up to 98% permissible

shaft end
Speed:  6000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial / Axial 10 N
Line driver output max: 50 mA per channel
Max. ppr 5000
Inertia: 30 gm-cm2
Certifications
IP 54, 65 or 66/X7

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

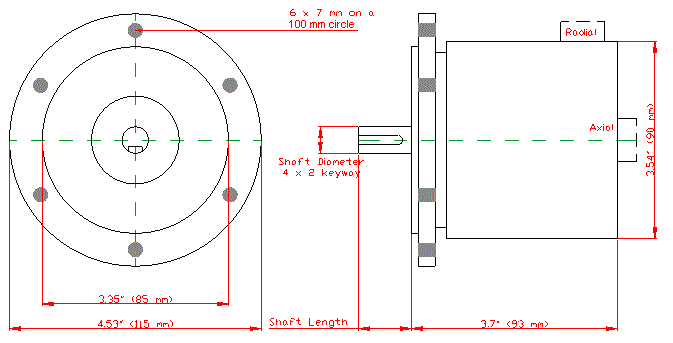

Dimensions
