Series DXE ProfiBus-PA single turn or multi turn shaft encoder |
|
|
D | E | K | 1 | - | 4 | 4 | X | X | - | X | X | X | X | |||||||||||
| | | Shaft Size | | | | |
|
Resolution |
||||||||||||||||||||
| | |
K1 = 12 X 25 mm |
| | | |
Number of turns. 0001 = single turn Multi-turn: 0002 = 2 turns 0016 = 16 turns ...and so on... Max 64 turns |
|||||||||||||||||||||
|
|
| | | | | | ||||||||||||||||||||||
|
Protection |
Connection | | | |||||||||||||||||||||||
| E = IP66M | 1 = 2 m cable | | | |||||||||||||||||||||||
| St. Steel | 2 = 5 m cable |
| |
|||||||||||||||||||||||
| EEx d IIC | | | ||||||||||||||||||||||||
| | | |||||||||||||||||||||||||
| Exit | |||||||||||||||||||||||||
| A = Axial | |||||||||||||||||||||||||
| R = Radial | |||||||||||||||||||||||||
Price: From £XXX.00 (subject to change)
| Technical Data | Connection Options | ||||
| Operating temp: | - 20 ...+ 60 degrees C | Cable | |||
| - 4 ...+ 140 degrees F | + Loop | Red | |||
| On request: | -20 ... + 100 degrees C | - Loop | Green | ||
| Current consumption: | 80 mA (max.) | ||||
| Power supply: | 24V | Output | |||

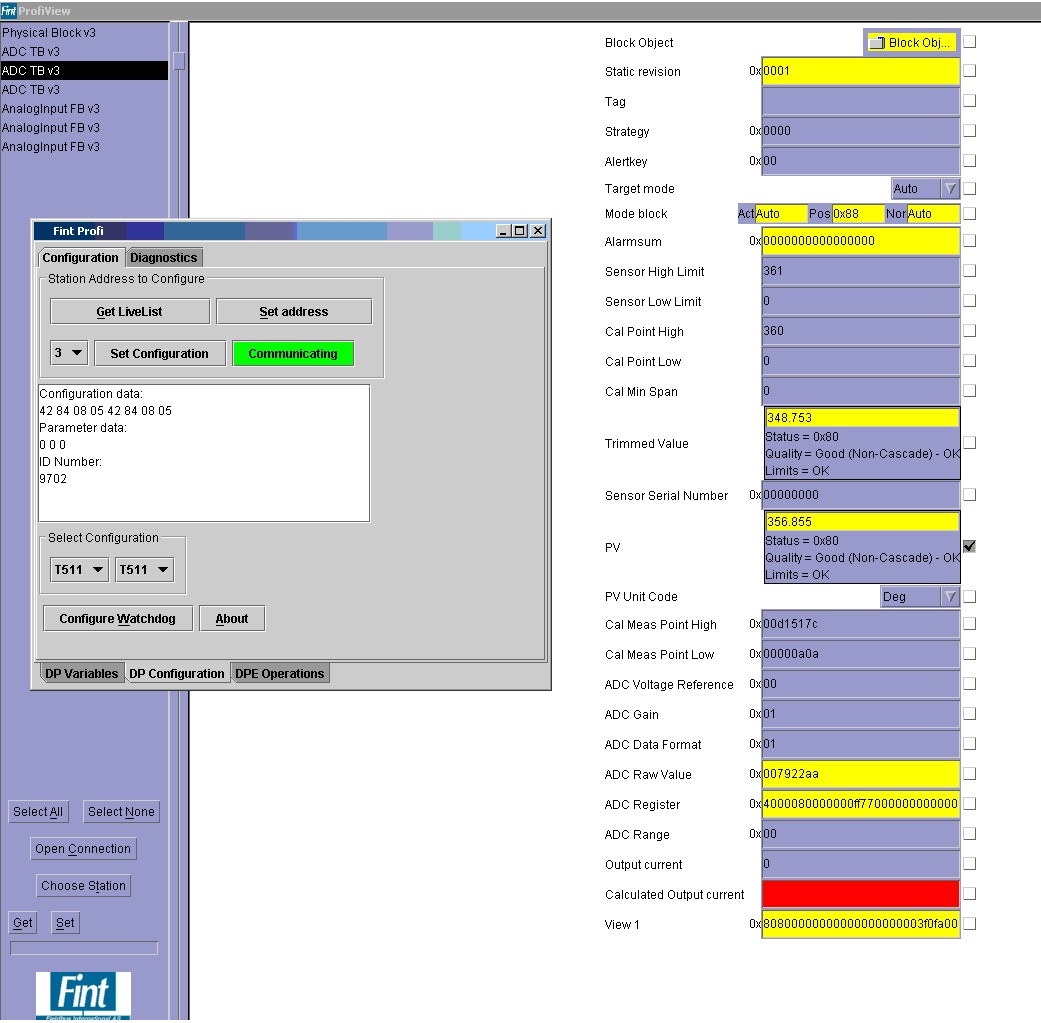

| Weight: | 6 Kg | ProfiBus PA - SCREEN SHOT | |||
| Housing: | Stainless Steel |
Hohner has entered into a an agreement with Fieldbus International A/S from Norway (Fint). The purpose of this agreement is to outfit our encoders and a fuel sensor with a bus powered Profi PA communication. Hohner will use a modified Profi PA communication board series T480 from Fint. Together with ProfiView and a preliminary GSD file, Hohner will finalize applications in the Oil & Gas industry with its customer base. The encoders and sensors will then be certified for use in hazardous areas. Fint has implemented IEC 1158 communications in various applications for the oil & gas industry while Hohner has a strong reputation in this area with encoders and sensors. |
|||
| Shaft: | Stainless Steel | ||||
| Bearings: | 2 x 6001 ZZ | ||||
| Torque: | 0.4 oz/in (3 N-cm) | ||||
| Humidity: | Up to 98% permissible | ||||
| Speed: | 3000 RPM max. | ||||
| Shaft load: | Radial / Axial 10 N | ||||
 |
|||||
| Certifications |
| Does not require a barrier for use in hazardous areas, it is EEx d IIC, making the barrier redundant. |
| IP 66 / 67 |
| EECS 1774 / 03 / 001 [Certificate] PDF file |
| EEx d II C T6 |
| SIRA 02 ATEX 1018 [Certificate] PDF file |
| Mounting Instructions |
| To mount
encoder on machine: Option 1 is to mount with three screws, option 2
is to use synchroflange mounting brackets. Hook up the encoder with the connections as described. Make sure
power supply meets specifications. Attach encoder to mounting
bracket as shown. Attach shaft using a flexible coupling.
|
| Dimensions |
|
|
