Series CSMXE stainless steel parallel absolute shaft encoder

M   E X X - X X X X - X X X X


|

   |___|

Output

 |

|



Resolution
| | 23 = Binary | 1024 = 10 bit
| | 26 = Gray | 4096 = 12 bit
| | | Exit
| |

|

 A = Axial
| Shaft Size | R = Radial
| K5 = 12 x 20 mm |
| Connection
Protection 3 = 10m cable
E = IP66/67 Stainless Steel 5 = 20m cable

    IECEx

Class I, Zone 1; Zone 21;  Class II, Div 2
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Bin / Gray cable with colours
-   4 ...+ 140 degrees F PS GND Black
PS 12 ... 24 V Red
Power supply: 11 - 24V 2-0 White
Current consumption: 100 mA (max.) 2-1 Blue
Line driver output max: 50 mA per channel 2-2 Yellow
Weight: 2.5Kg 2-3 Green
2-4 Violet
Protection: IP 66 / 67 2-5 Brown
Housing: S. Steel 2-6 Pink
Shaft: S. Steel 2-7 White/Red
Bearings: 2 x 6001 RSH 2-8 Grey
Torque: 0.4 oz/in (3 N-cm) 2-9 White/Green
Shaft Seal: Nitrile Double Lip 2-10 White/Yellow
Humidity: Up to 98% permissible 2-11 White/Blue
Speed: 3000 RPM max. For cw White/Black NC
Shock: 10g (6msec) For ccw White/Black to GND
Vibration: 5g (500 Hz)
Shaft load: Radial max 10 lbs
Output
Count will increment in cw direction
Certifications
Flameproof, does not require barrier for use in hazardous areas, and we use a barrier gland for added safety
IP 66/X7
ATEX [Certificate]
IECEx [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with 3 screws or, option 2 is to mount using synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

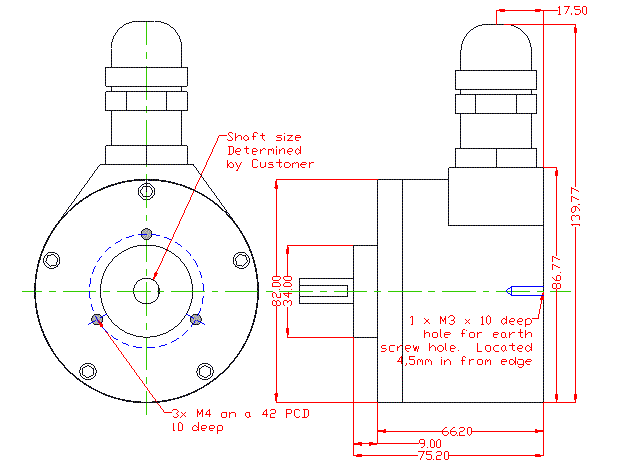

Dimensions
