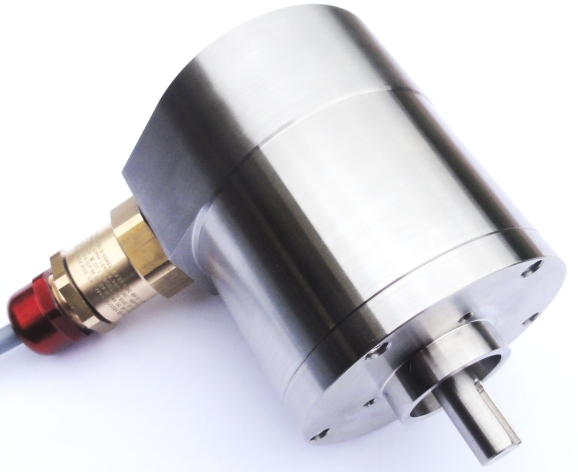

Series CMMXE ProfiBus multiturn absolute stainless steel shaft encoder

M   U X X - 7 S X X - X X X X


|

   |___|   |

|



Resolution
|

Shaft Size

 | | 1212 = 12 x 12
|

K5 = 12 x 20 mm

 |

Exit
|

| A = Axial
Protection

|

 R = Radial
U = IP66/67 Stainless Steel

Connection

3 = 10m cable
5 = 20m cable



Standard ProfiBus-DP output but with a single cable gland and software selectable settings for identity and parameters.



    IECEx

Class I, Zone 1; Zone 21;  Class II, Div 2
Technical Data Communication Data
Operating temp: - 40 ...+   60 degrees C Interface: RS485
- 40 ...+ 140 degrees F Protocol: ProfiBus DP Class 2 Profile C2
Current consumption: 230 mA   (programmable)
Power supply: 10 - 30 V Resolution: Singleturn max 12 bit
Weight: 4.0 Kg Multiturn 24 bit (12s x 12m bit)
Protection: IP 66/67 Linearity: +/- 1/2 LSB x 12 bit
Housing: Stainless Steel Type of Code: Binary
Shaft: Stainless Steel Device Address: Set via software
Bearings: 2 x 6001 Term Resistors: Set via software
Torque: 0.7 oz/in (5 N-cm)
Humidity: Up to 98% permissible
Speed:  6000 rpm
Shock: 10g (6msec)
Vibration: 5g (500 Hz) Programmable Functions
Shaft load: Radial / Axial 10 N Direction
Inertia: 100 gm-cm2 Resolution per revolution
  Total resolution
Data Sheet for ProfiBus Preset
Link to data sheet Parameters Speed
Certifications
Flameproof, does not require barrier for use in hazardous areas, and we use a barrier gland for added safety
IP 66/X7
ATEX [Certificate]
IECEx [Certificate]
CSA [Certificate]
GOST-CU [Certificate]

Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with 3 screws or, option 2 is to mount using synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

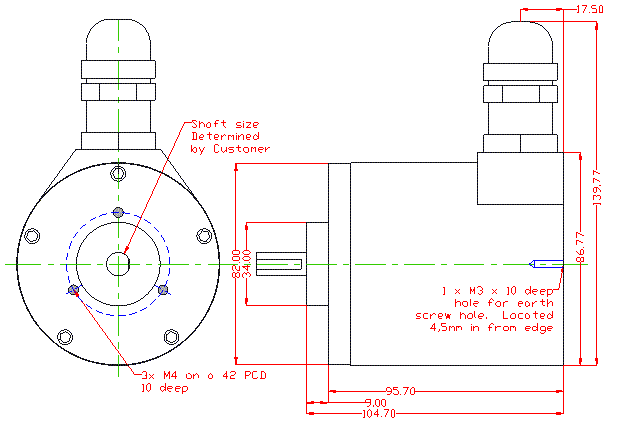

Dimensions:
