Series DXE Incremental DeviceNet Encoder  (Explosion Proof - Ex d IIC)


D   E   K   1 - 3   3   3   X - X   X   X   X
  |____|   |

|



Resolution

  |

Connection

  Exit
Shaft Size 3 = 10 m cable   A= Axial
K1 = 12 x 25 mm     R = Radial




Zone 1, Class 1 Div 1


Technical Data Encoder Description
Operating temp: - 20 ...+   60 degree C An incremental encoder is coupled to a 32 bit built in counter
- 04 ...+ 140 degree F Value is measured in counts between 0 and 4 294 967 295
On request - 20 .. +100 degree C DeviceNet Service - reset code 05 will reset the counter to 0
Current consumption: 80 mA (max.)
6 ft drop cable Device Configuration
Weight:    6 Kg ODVA profile: Resolver
Protection: IP 66 / X7 Explicit Peer to Peer Messaging Not supported
Housing: Stainless Steel I / O Peer to Peer Messaging Not supported
Shaft: Stainless Steel Configuration consistency value Not supported
Bearings: 2 x 6001 ZZ C2 Faulted node recovery Not supported
Torque: 0.4 oz/in (3 N-cm) Baud rate Supported
Humidity: Up to 98% permissible Master / Scanner Not supported
Speed:  3000 RPM max. I / O Slave messaging Not supported
Directions Numbers rising in Bit strobe Not supported
cw direction Poll  Supported
Standards Cyclic Not supported
UL file number  -  198887 Change of state Not supported
European standard EN 50324 EDS
Tested by University of Michigan Vendor ID 34
Devicetype  9
Product code 2
Product name MTDR
Catalog 12 bit absolute encoder
Expected response data 4 bytes
Maximum value 32 bit

Connections
GND Black
PS24V Red
Can High White
Can Low Blue

Certifications
Does not require a barrier for use in hazardous areas, it is Flameproof, making the barrier redundant.
IP 66/X7
Ex d IIC
ATEX [Certificate]
IECEx [Certificate]

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

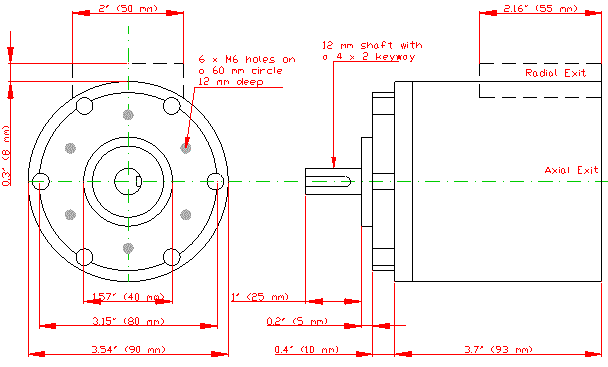

Dimensions
