290806 - Series 03 Multiturn Absolute DeviceNet Encoder

Technical Data		Encoder Description
Operating temp:	- 20 ...+ 60 degree C	The 12 x 12 bit absolute multiturn encoder has a 24 bit
	- 04 ...+ 140 degree F	binary value
On request	- 20 .. +100 degree C	The 9 x 9 bit absolute multiturn encoder has an 18 bit
Current consumption:	80 mA (max.)	binary value
6 ft drop cable		Device Configuration
Weight:	20oz (0.57 kg)	ODVA profile:	Resolver
Protection:	IP 54 or 65	Explicit Peer to Peer Messaging	Not supported
Housing:	Aluminum	I / O Peer to Peer Messaging	Not supported
Shaft:	Stainless Steel	Configuration consistency value	Not supported
Bearings:	2 x 6001 ZZ C2	Faulted node recovery	Not supported
Torque:	0.4 oz/in (3 N-cm)	Baud rate	Supported
Humidity:	Up to 98% permissible	Master / Scanner	Not supported
Speed:	3000 RPM max.	I / O Slave messaging	Not supported
Directions	Numbers rising in cw direction	Bit strobe	Not supported
		Poll	Supported
Standards		Cyclic	Not supported
UL file number - 198887		Change of state	Not supported
European standard EN 50324		EDS
Tested by University of Michigan		Vendor	ID 34
		Devicetype	9
		Product code	5 for 12 x 12
		Product code	4 for 9 x 9
		Product name	MTDR
		Catalog	24 bit absolute encoder
		Expected response data	4 bytes
		Maximum value	24 bits

Mounting Instructions
Hook up the encoder with the connections as described. Make sure power supply meets specifications. Attach encoder to mounting bracket as shown. Attach shaft using a flexible coupling.

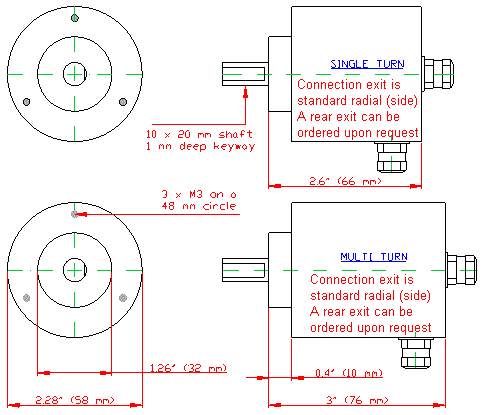

Dimensions
