Series 90 singleturn analog encoder with 4 ... 20 mA output


9   0   X   X - 3   4   X   X - 0   X   X   X
  Shaft   Connection

Resolution - turns

09 = 1 - 1/2"

07 = 4 pin 0360 = 360 degrees

   - keyway 5/16"

05 = 6 ft cable 0180 = 180 degrees

11 = 2"

0090 = 90 degrees

   - keyway 3/8"

15 = 1 - 5/8"

   - keyway 3/8" *4...20mA span based on 250 ohm load
16 = 1 - 11/16"
18 = 50mm
33 = 1 - 15/16"
55 = 55 mm
60 = 60 mm
78 = 1 - 7/8"

Technical Data
Operating temp: - 20 ...+   60 degrees C Power supply: 24 Volts
-   4 ...+ 140 degrees F Current cons: 100 mA
Higher Temperature: Please consult
Max frequency: 40 kHz Connection:
Power: 24 Volts 6 ft cable, 3 wire
Connection: 6 ft cable Black = GND
Weight: 70.4 oz (2 kg) Red = +24 Volts
Protection: IP 54 White = Output, (4 ... 20 mA)
Housing:  Die cast zinc alloy
Shaft: Aluminum
Bearings: 2 x 6011
Torque: 0.4 oz/in (3 N-cm)
Humidity: Up to 98% permissible
Speed: 1000 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Supports its own weight
Mounting Instructions

Mount fixture to the encoder with two self-tapping M6 x 10 screws and two No. 6.2 washers.  Slide the encoder onto the shaft. With two 1/2-13 screws, tighten the encoder fixture to the motor-frame or machine.  With the setscrews, tighten the hollow shaft encoder onto the shaft with a minimum clearance of 1/16" between fixture and encoder by bending the fixture arms as required.  Connect the encoder as per wiring specifications.
Make sure power supply is within the proper voltage and current rating.  Encoder can be mounted with the setscrew on the machine side or on the opposite side for either CW or CCW.  See datasheet for CW and CCW directions of the outputs.

Technical data for tether:  0.3 mm stainless steel sheet

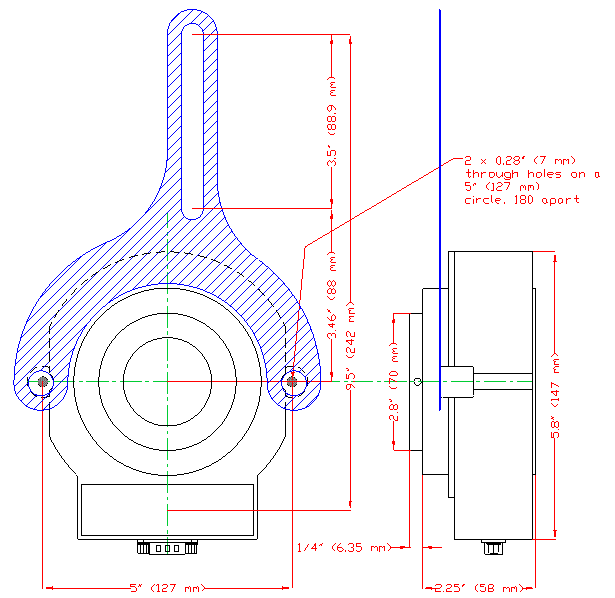

Dimensions
