Series 16 Linear Position Sensor with 4 ... 20 mA Analog Output

1



6



0



0

-

 3   4   X   X - X   X   X   X
  Connection

Measuring Length
05 = 6 ft cable 1600 = 1600 mm
07 = 4 pin plug 3200 = 3200 mm



Call 1 800 295 5693 or email us for pricing and other information.

To purchase online, please request an "e-quote"

Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Connector 3+S Cable
-   4 ...+ 140 degrees F PS GND 1 PS GND Black
On request: -20 ... + 100 degrees C PS + 24 V 2 PS 24 V Red
Power supply: 24V Output 3 Output Blue
Current consumption: 100 mA (max.)
Weight:    40 oz (1.2 kg) Output
Protection: IP 54 NEMA 3 Count will increment in CW direction.  Precision - 0.05%
Housing: Aluminum / S. Steel
Wire: Stainless Steel
Humidity: Up to 98% permissible
Shock: 10g (6msec)
Vibration: 5g (500 Hz)

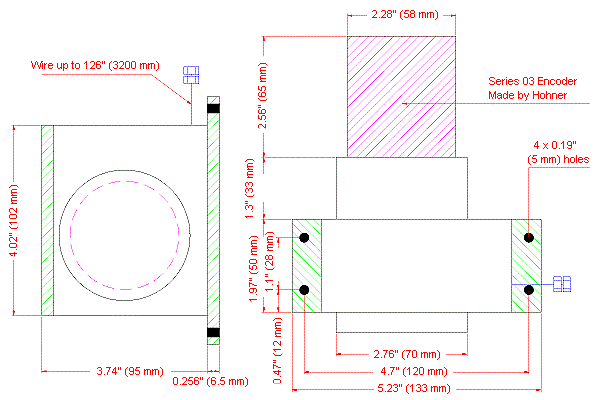

Dimensions
