Series H incremental high resolution shaft encoder


H - 3   3 6 5 W - X X X X X

Resolution - ppr

10000 = 10,000 ppr

65536 = 65,536 ppr

90000 = 90,000 ppr

Shaft Size

6 mm diameter



Connection

12 pin plug & socket








Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C 12 pin
-   4 ...+ 140 degrees F PS GND 1
On request: (18000ppr) -20 ... + 100 degrees C PS 5 V 2
Max frequency: 300 kHz Output A 3
Current consumption: 100 mA (max.) Output B 4
Power supply: 5 V Output A inv 5
Weight:    10 oz (0.3 kg) Output B inv 6
Protection: IP 65 Output O 7
Housing: Aluminum Output O inv 8
Shaft: Stainless Steel
Bearings: 2 x 6000 - (Z) (RS) Output
Torque: 0.7 oz/in (5 N-cm) Diagram is shown with clockwise shaft rotation viewed from
Humidity: Up to 98% permissible

shaft end

Speed:  1800 RPM max.
Shock: 10g (6msec)
Vibration: 5g (500 Hz)
Shaft load: Radial / Axial 10 N
Line driver output max: 40 mA per channel
Max. ppr 90000


Certifications
UL : E230041

Mounting Instructions
Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

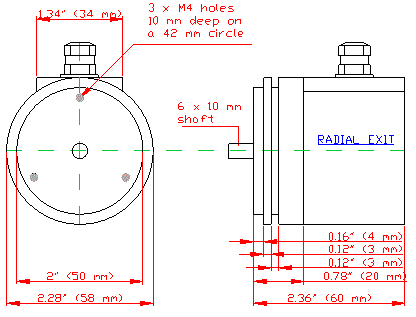

Dimensions
