    9080 Tether

Mount fixture to the encoder with three self-tapping M6 x 10 screws and three No. 6.2 washers.

Slide the encoder onto the shaft.

With two 1/2-13 screws, tighten the encoder fixture to the motor-frame or machine.

Keep clearance between the encoder and motor or housing by bending the fixture arms as required.

Tighten the setscrew onto the shaft.

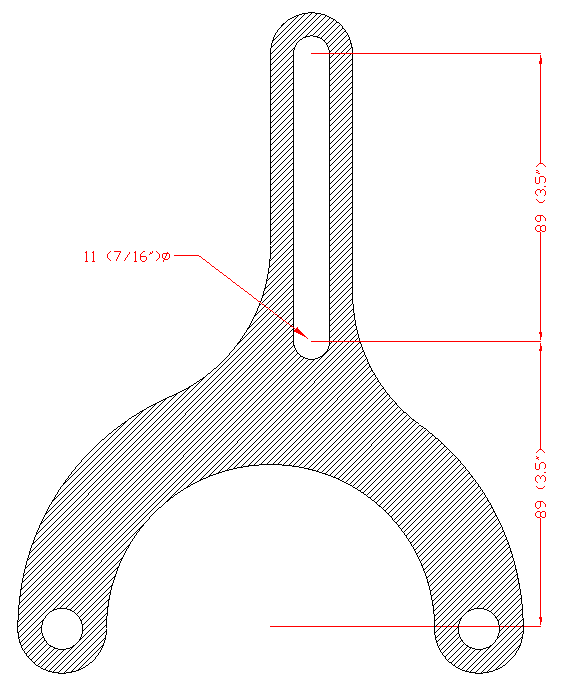

0.3 mm stainless steel sheet

three self-tapping M6 x 10 screws

three No. 6.2 washers
