Series CS3 absolute parallel encoder
C S   3 X - P 9 X X - X X - X X X X
Output Code   |   |   |___|

Resolution - bits
  A = gray cw   |   |

|

 1024 = 10 bit
  B = gray ccw   |   |   | 4096 = 12 bit
  C = binary cw   |   |   |
  D = binary ccw   |   |

Housing
  J = gray cw/ccw   |   |   BA = IP65 Aluminum
  K = binary cw/ccw   |   |   NB = IP66 Aluminum
      |   |   SB = IP66 S. Steel


Connection

   |    (click to see dimensions)
  0 = 16 pin

Exit


  1 = 2 m cable A = Axial
  2 = 21 pin

R = Radial


  4 = 12 pin
*Standard shaft is 12x20mm, other sizes available
Technical Data Connection Options
Operating temp: - 20 ...+   60 degrees C Bin / Gray 16 / 21 pole Cable
-   4 ...+ 140 degrees F PS GND 1 Black
Higher Temperature: Please consult PS 12 ... 24 V 2 Red
Power supply: 12 - 24V 2-0 3 White
Current consumption: 100 mA (max.) 2-1 4 Blue
Line driver output max: 50 mA per channel 2-2 5 Yellow
Weight: 4 kg Stainless Steel 2-3 6 Green
1.0 kg Aluminum 2-4 7 Violet
Protection: IP 54, 65 or 66 2-5 8 Brown
Housing: Aluminum or SS 2-6 9 Pink
Shaft: Stainless Steel 2-7 10 Turquoise
Bearings: 2 x 6001 ZZ C2 2-8 11 Grey
Torque: 0.4 oz/in (3 N-cm) 2-9 12 Orange
Shaft Seal: Nitrile Double Lip 2-10 13 Green / Red
Humidity: Up to 98% permissible 2-11 14 Red / Blue
Speed: 3000 RPM max. 2-12 15 Yellow / Red
Shock: 10g (6msec) cw = N / C to pin 16 or 21 Red / Black
Vibration: 5g (500 Hz) ccw = pin 16 or 21 to GND
Shaft load: Radial max 10 lbs
Output
Count will increment in cw direction
Mounting Instructions
To mount encoder on machine:  Option 1 is to mount with 3 screws or, option 2 is to mount using synchroflange mounting brackets.  Hook up the encoder with the connections as described.  Make sure power supply meets specifications.  Attach encoder to mounting bracket as shown.  Attach shaft using a flexible coupling.

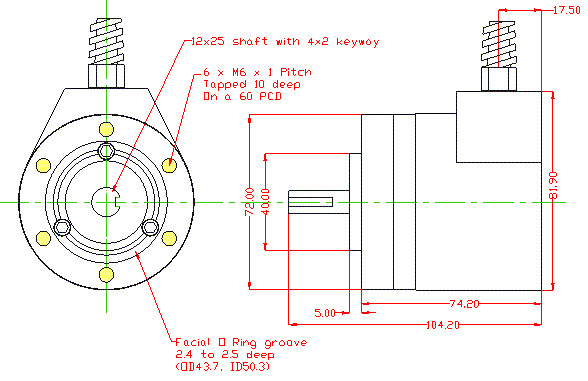

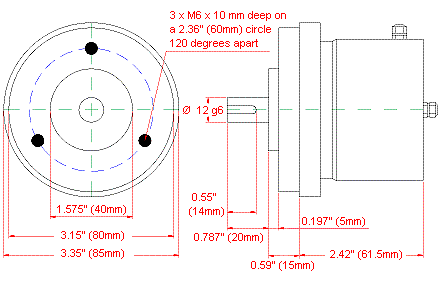

Dimensions
